Straight Wall Tool

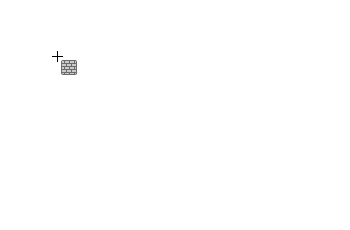

Straight Wall tool

To draw a single wall, click on your floor plan. Then double-click at another point to specify the end of the wall.

To add several linked wall segments, click on the floor plan in the points where one segment ends and another begins. To finish drawing the last segment, double-click.

To cancel, hit the Esc button.
