Wall Panel Poly Tool

Wall Panel Poly Tool

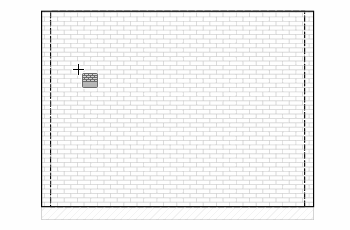

To add a wall panel:

  1. Click on the wall to locate the first corner of the wall panel.
  2. Click several more times to place all of the other corners except one.
  3. Double-click to add the last corner.

To edit the shape of the object, double-click on its outline. In the editing mode, you will be able to move, add or delete corners of the outline.

Detailed info:
The 2D Elevation View
