Working with Materials

List of Object's Materials in the Inspector

The Object Materials tab in the Inspector lists the materials of a selected object. The Inspector can also show the materials of several selected objects. In this case, the materials of each object will be grouped under the object's name.

Object's materials in the Inspector

The materials of some objects like walls or roof segments also have icons to the right of its name. An icon can indicate which part of the object it is applied to (such as wall side or moulding). Frames around icons indicate that the corresponding materials are on the same object's side, for example, the internal side of the wall.

To replace one of materials in the list, drag a new material from the library and drop it onto the old material. In the same way, you can drag and drop one material in the Inspector onto another.

Adjusting the Texture Size and Orientation

To show the Tile Transform tools, tap the Tile Transform button at the bottom of the Inspector. The tools let you adjust the texture size, offset and orientation of materials applied to an object. These tools can work with walls, ceilings, floors, wall panels, openings, niches, roofs and building blocks.

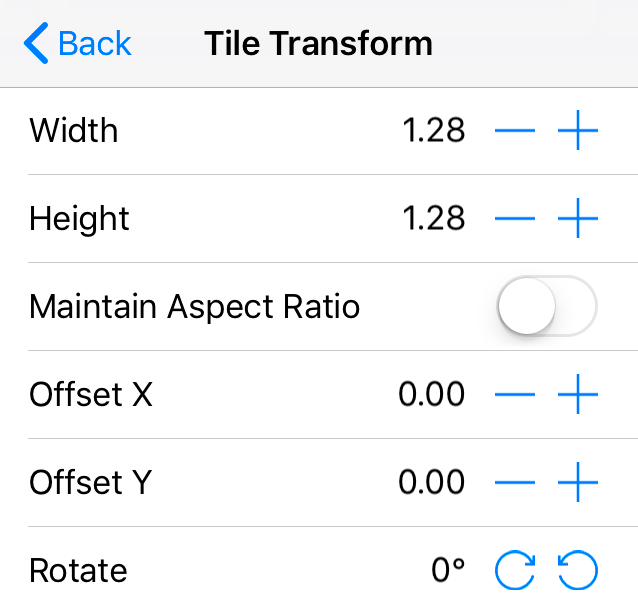

Tile Transform tools

Using Tile Transform, you can make a texture meet an edge or corner of a wall.
