Working with Roofs

Adding a Dormer Window

To add a dormer window, drag it from the Dormers category in the object library and drop onto the roof. You should then move the dormer around to install it properly.

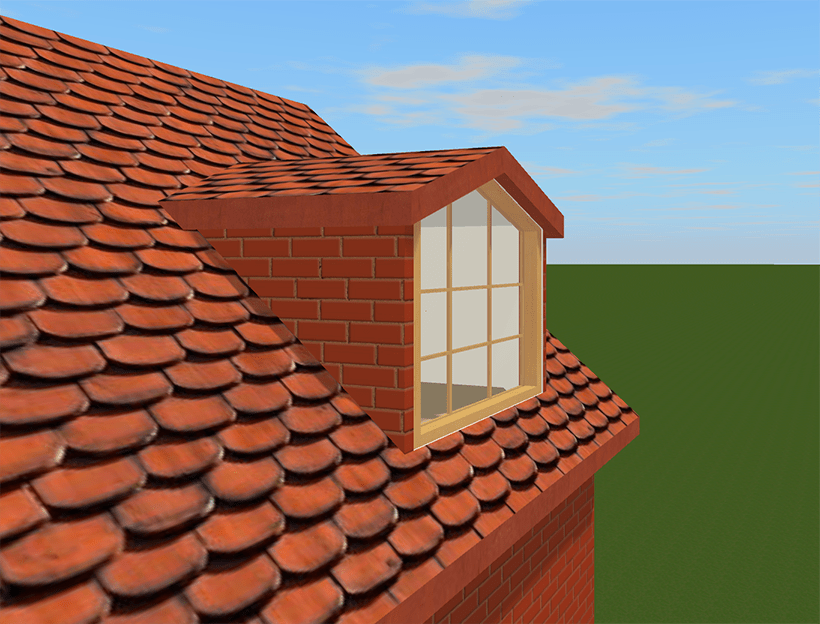

Dormer

To remove a dormer, select it in the Project Tree and tap on the Delete button in the toolbar.

You can replace the default window with another window or opening of your choice.

All parts of the dormers (except for windows or openings) are the same segments as the ones used to create roofs. To change the configuration of a dormer, you should use tools from the Object Properties tab of the Inspector. Here you can set the dormer width and change the angles of its segments.

It is possible to change the dormer type using the same technique as described in the Modifying the Style of a Roof section.

You can save modified dormers to the object library.
