Modeling the Terrain

Introduction to the Site Layer and Terrain

The Purpose of the Site Layer

The Site layer accompanies the Ground Floor layer. They both have the same elevation level, and both must be present in any project, but they have different purposes.

The Ground Floor is intended to keep the parts of the building located on the ground level. This can be the ground floor itself, terrace and so on.

The Site is used for standalone structures, such as a garden pavilion, pool, fence or for outdoor plants. The Site layer is also used to model the terrain.

The functionality described in this section is only available in the Pro edition.

The Site Layer in the Inspector

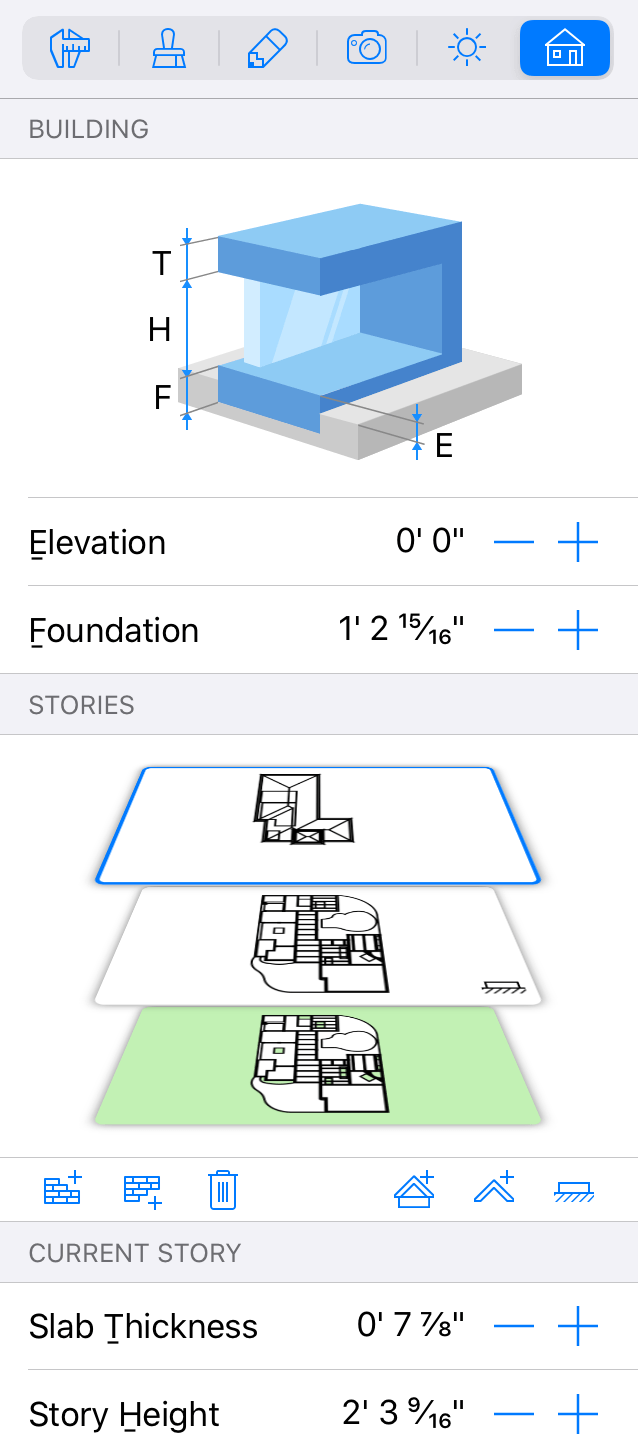

In order to preview the Site in the 2D Plan view, the Site should be activated by tapping on its thumbnail in the Building Properties tab of the Inspector.

The thumbnail of the Site is always located next to the Ground Floor. If you pick another floor to be the ground floor, the Site will change its position in the Inspector accordingly.

Unlike floors, the Site has no settings in the Inspector. You can neither add nor delete the Site.

Objects on the Site

Objects of the Furniture type (basically, most of the objects in your project) behave on the Site in the same way as they were placed on a floor. As long as the object's Glue By option is set to Glue by bottom side, the elevation of the object is defined by the level of the ground, either default or customized.

You can move objects from the Site to any floor and vice versa. Long-touch the object and choose Move Selection To… in the pop-up menu. Then select a new location.

A Building on the Site

The Site is not supposed to be used for editing a building. Your building will be displayed as a solid object with just a few details.

You can move and rotate the building on the Site in relation to the surrounding objects. So, to move a building, just drag it to a new location.

In order to rotate a building, select it and then use the rotation handle as you do with regular objects. Note that the orientation of the building on the floor plan in relation to the screen will not change after rotating it on the Site.

Custom Terrain

Any project has the global totally flat terrain by default. You can model tilted ground or roughness with help of a custom terrain. The latter is a special object type that can be added only on the Site.
