Guidelines and the Layout Grid


Guidelines are used to align objects on the floor plan or elevation view and also to mark up the layout before drawing or placing objects.

To add a guideline, tap on the plus button in the toolbar and choose the Auxiliary tool set. Then tap on the Add Horizontal Guide or Add Vertical Guide button.

To select a guideline, tap on it. The Information bar, which is above the horizontal ruler, displays the coordinate of the selected guideline.

To move a guideline, drag it.

To remove a guideline, long-press on it and choose Delete in the popup menu.

Like other objects, guidelines are listed in the Project Tree where they can be locked or made invisible.

Managing Guides in the Inspector

The Object Properties tab of the Inspector lists guidelines that are present on the current level (floor or site). The Inspector lets you add and delete guides using the buttons below the list.

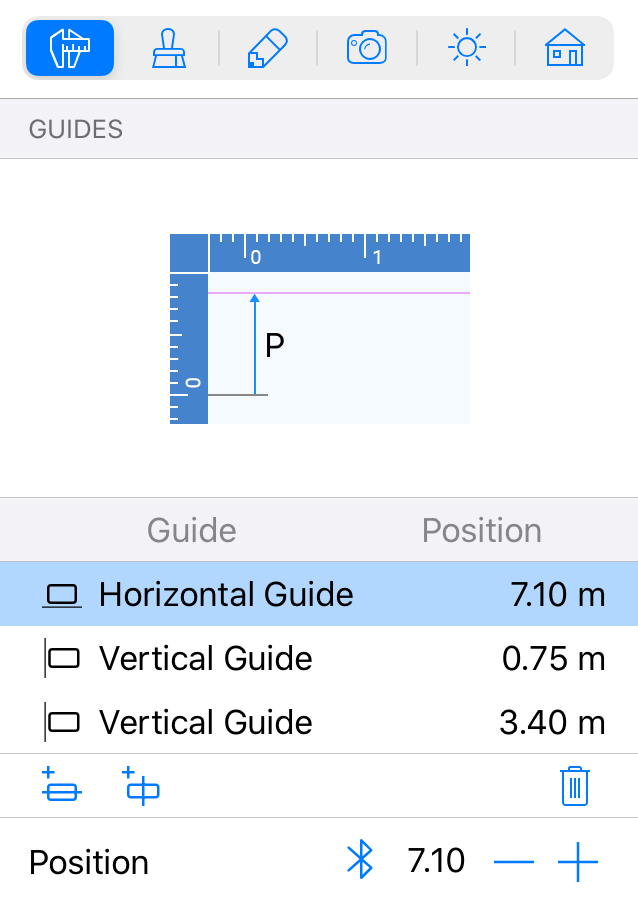

The list of guidelines in the Inspector

In addition to dragging guides on the floor plan or Elevation view, you can change the location of a guide using the Position field.

Smart Guides

There are also smart guides in the program. Smart guides are temporary guidelines that appear when you draw walls, floors or ceilings, and when you move objects.
