Modeling the Terrain

Creating a Pathway

In this section, we are going to learn how to create and edit a pathway. The Pathway tool is located in the Site set of tools. This tool is available when the Site layer is activated.

The functionality described in this section is only available in the Pro edition.

Popup menu with Site tools.

To create a pathway, activate the Pathway tool. Tap with the tool where the pathway should begin. To add a corner, tap once. To define a point where the path should end, double-tap at this point.

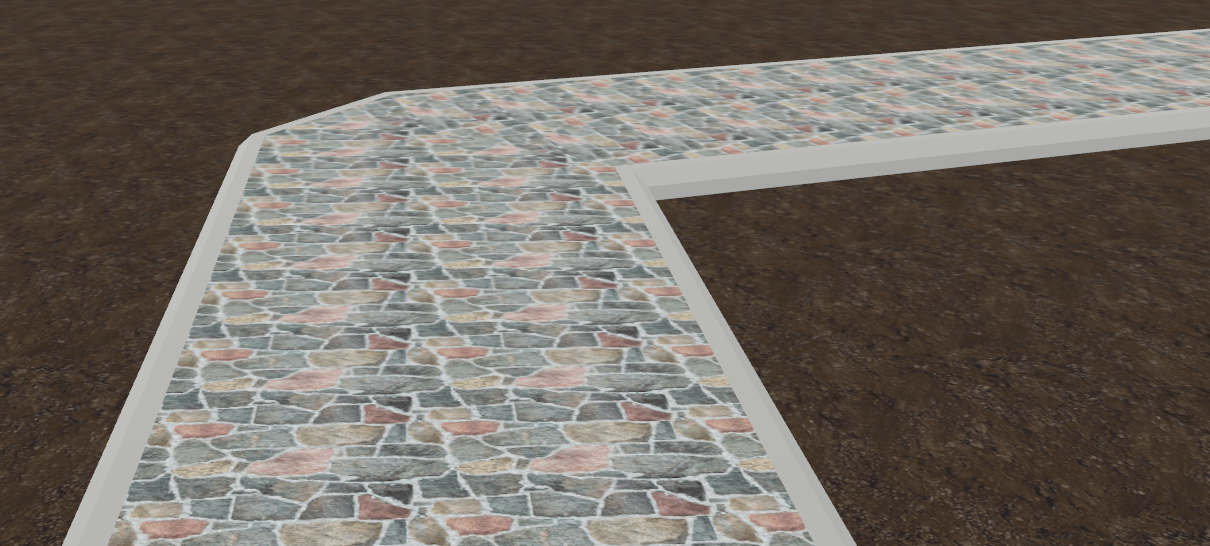

Illustration of a pathway.

Parts of the Pathway Object

In the 2D view, the shape of a pathway is defined by the central line that is visible in the edit mode. The width of a pathway is shown by the outline.

The central line passes through points with diamond-shaped handles. These points allow you to change the shape and elevation of the pathway. They are listed in the Inspector.

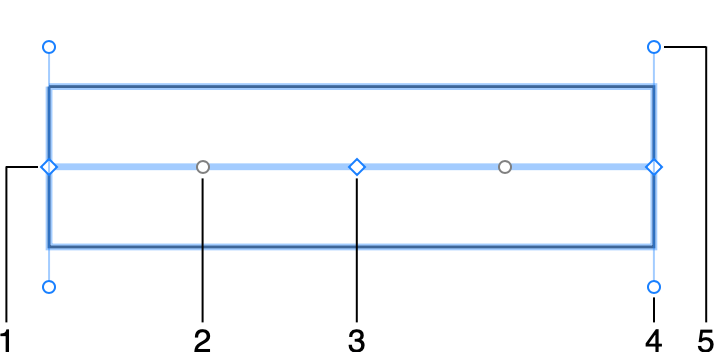

Parts of the pathway object in the 2D view.

1 - One of the end points.

2 - A circular handle that lets you transform a straight segment into an arc-shape.

3 - An intermediate point with the diamond-shaped handle.

4 and 5 - Handles that change the pathway's angle at one of its ends.

The 3D model of a pathway consists of four parts. We can distinguish them because we can adjust their size or material separately from the other parts.

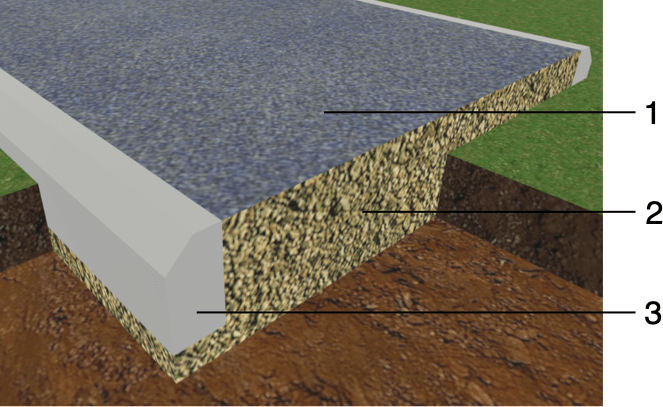

Parts of the pathway object in the 3D view.

1 - Surface layer.

2 - Base layer.

3 - Curb. There is another one on the opposite side.

Properties of the Pathway Object

Properties of the Pathway object can be found in the Object Properties tab of the Inspector.

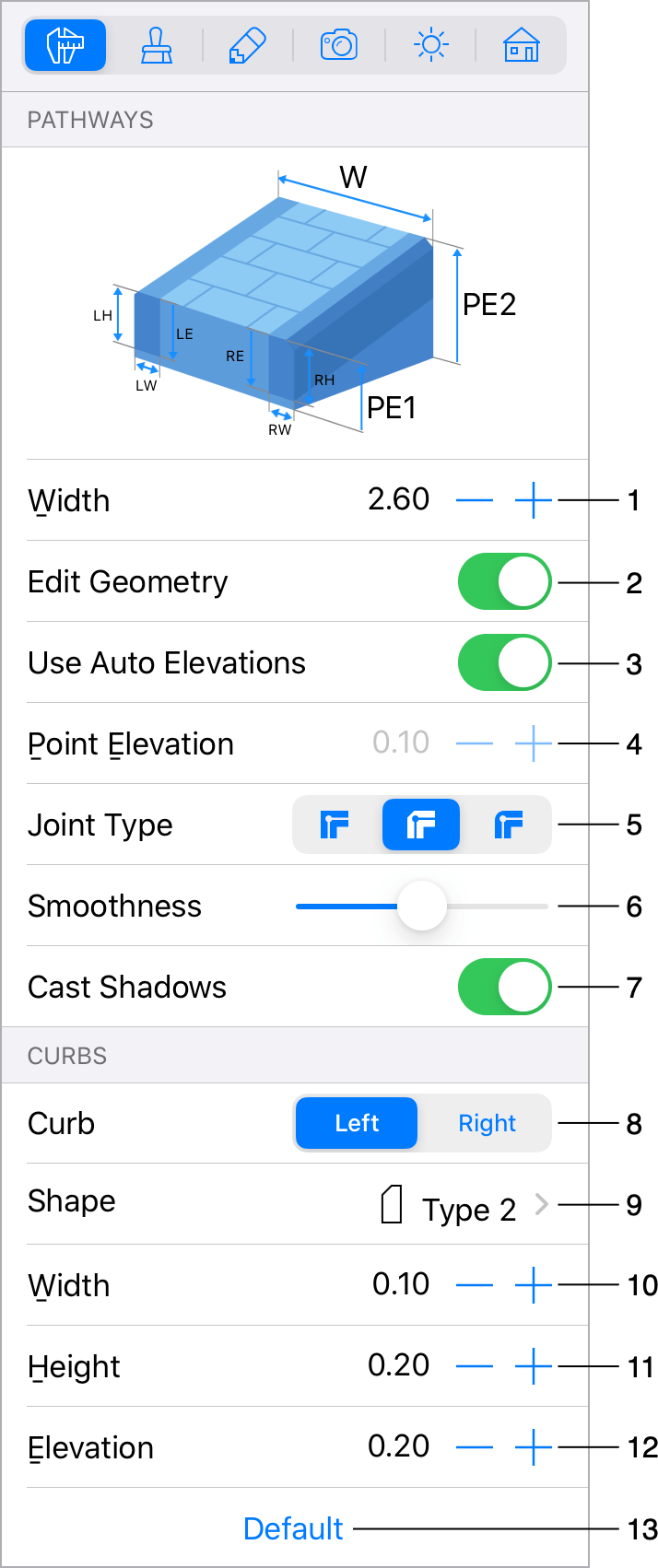

Properties of the Pathway object in the Inspector.

1 - The Width parameter defines the total width of a pathway, including the curbs.

2 - The Edit Geometry option allows or disallows modifying the shape of a pathway.

3 - The Use Auto Elevations option allows the program to set the elevation of points automatically. It is activated by default. If you need to adjust the elevation of a pathway at some point, turn the option off. Then select a point in the 2D Plan view and set a new value in Point Elevation.

4 - The Point Elevation edit box lets you change the elevation of a pathway at the selected point. This is possible only if the Use Auto Elevations option is deactivated.

5 - The Joint Type option lets you choose the shape of a pathway in a corner.

6 - The Smoothness slider changes how curved segments of a pathway look in 3D. At the Min position, the 3D shape is approximated with a smaller number of larger facets. This improves the program performance, but makes the shape less accurate.

7 - You can turn the object's shadow on or off using the Cast Shadows option. Switching off the shadow can be useful to increase the program performance when it renders the 3D scene.

8 - Select one of two curbs to display its properties.

9 - Select the shape of a curb. To have a pathway with no curbs, select the None option. Curbs on each side of the pathway have individual sets of settings.

10 - The width of a curb.

11 - The height of a curb.

Curb height (H) is 0.2
A curb with smaller height.

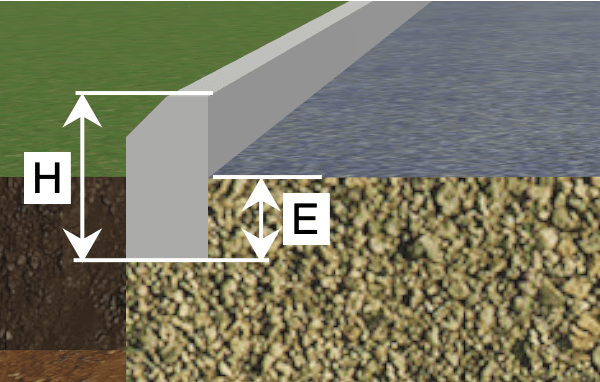

Curb height (H) is 0.3
A curb with larger height.

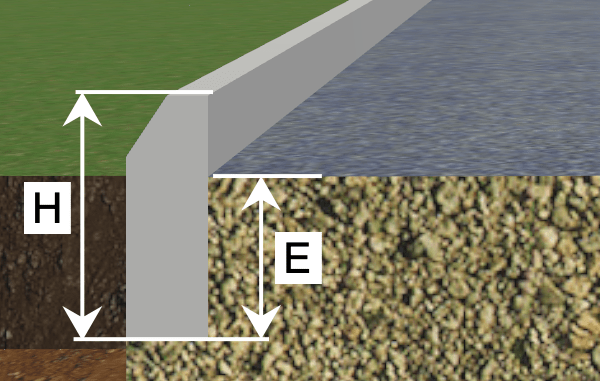

12 - The elevation of a curb. It is measured from the surface of the pathway to the bottom of the curb.

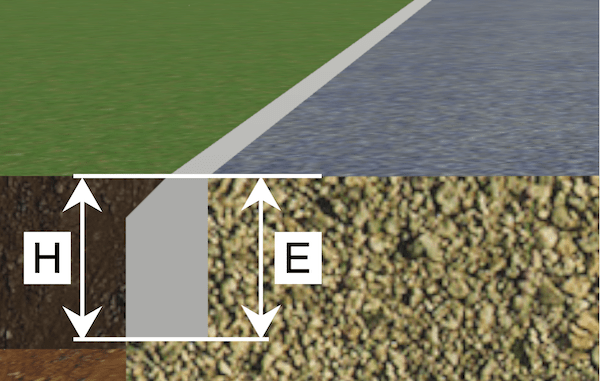

Curb elevation (E) is 0.2
A curb with higher elevation.
Curb elevation (E) is 0.1
A curb with lower elevation.

13 - Restore the default settings.

Edit a Pathway

Change the Width

In order to set a new width, use the Width control in the Inspector.

Edit the Shape

To be able to edit a pathway, you should long-press on it and choose Edit Contour from the context menu. You can do the same by double-tapping on the object if the Edit Geometry option is not locked in the Inspector.

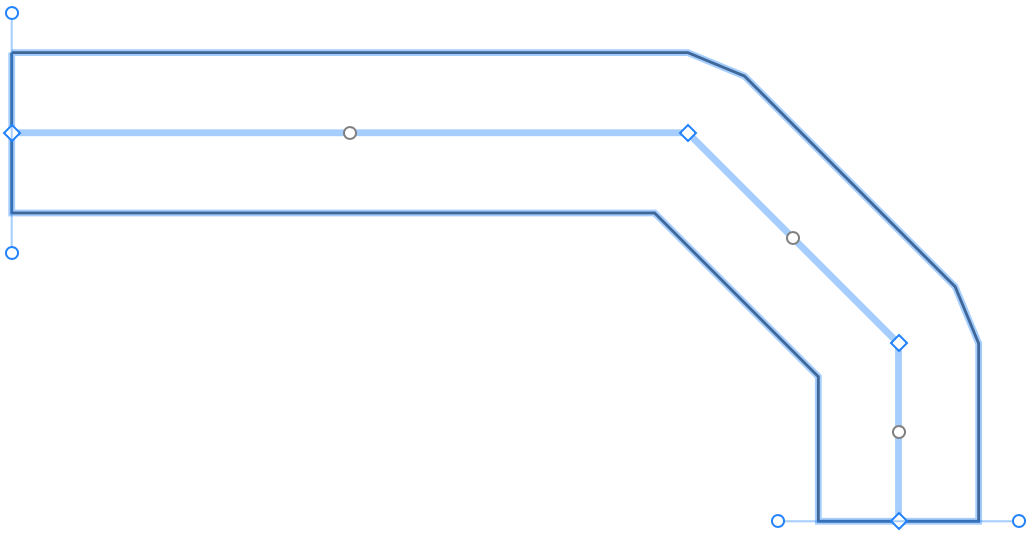

A pathway object in the edit mode.

When you draw a pathway, you add its start and end points, and, possibly, one or more intermediate points to create turns. The locations of all of these points define the shape of the central line. Each point has a diamond-shaped handle. Finally, the created pathway goes along the central line with a specified width.

To make the pathway go in a different way, move one or multiple of its points.

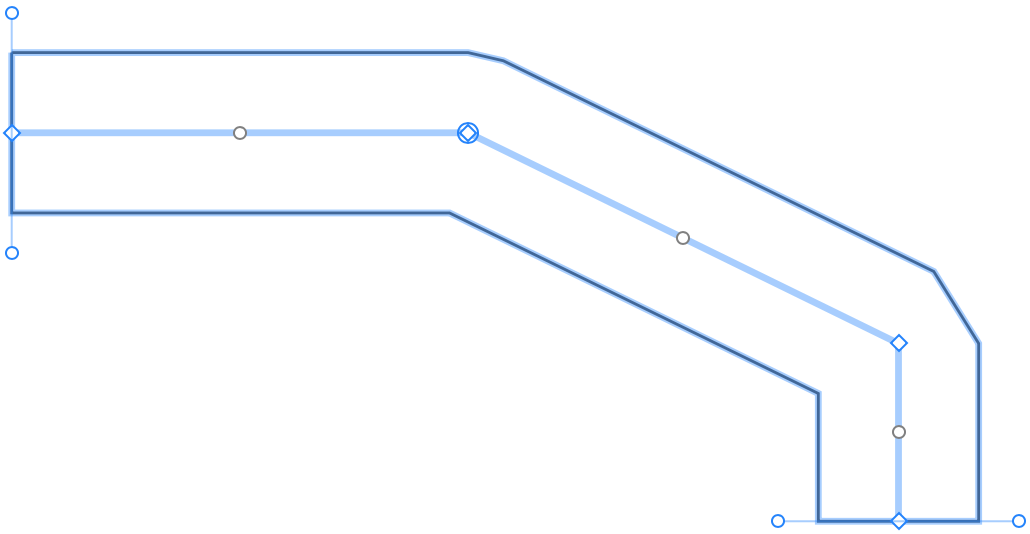

A pathway object in the edit mode.

The part of a pathway between two points is called a segment. By default, all segments are straight, but you can make a segment rounded by dragging a circular handle in the middle of this segment.

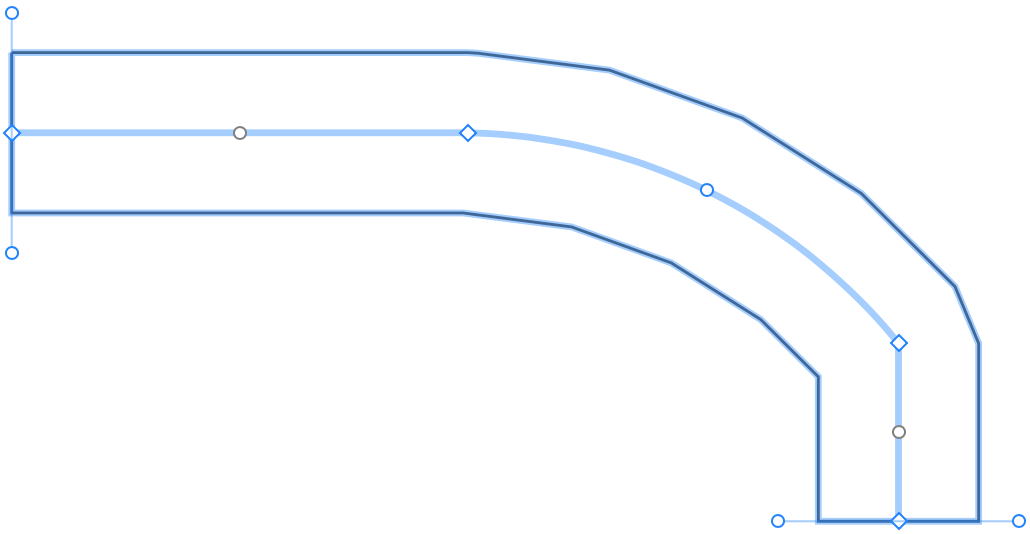

A pathway with rounded segment.

You can see in the 2D and 3D views that the sides of the rounded segments are made out of a number of straight lines rather than an arc. Such an approximation lets the program render the 3D view slightly faster. If you need to have a perfect arc, move the Smoothness slider to the right.

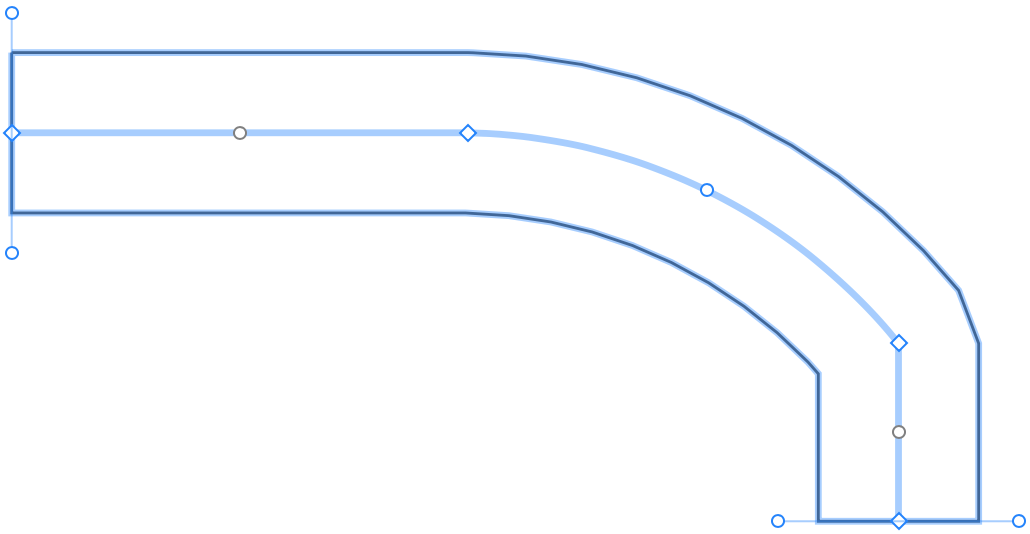

A pathway with smooth rounded segment.

Add or Delete Points

Points play the key role in editing a pathway. At some moment, you may find out that there are not enough of the original points to shape the path as you want. In this case, you can add more points.

To add a point, double-tap on the path for entering the edit mode. Then long-press on the central line at the location where a new point should appear. Finally, select Add Point from the context menu.

To delete a point, activate the edit mode. Long-press on the point and choose Remove Point.

Choose Corner Type

By default, pathways have corners with the Bevel type.

A pathway with a bevelled corner.

The Inspector lets you apply other shapes using the Joint Type drop-down menu.

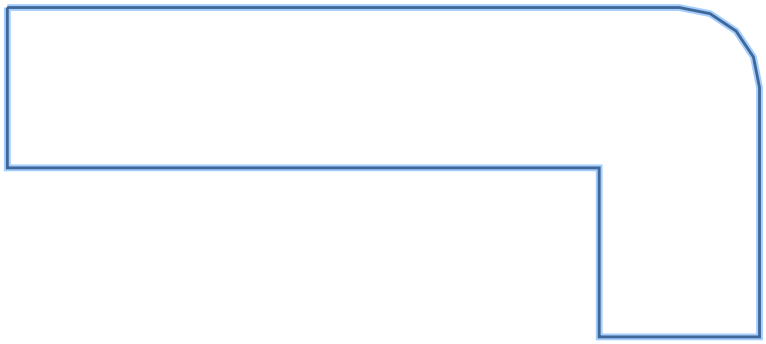

A pathway with a round corner.

Adjust the Angle at the Pathway End

A pathway may adjoin another pathway at an angle other than 90 degrees. In such a case, you can adjust the angle at one or both ends of the pathway.

Each end point has a direction line with handles on its ends. To change the angle, move one of those handles.

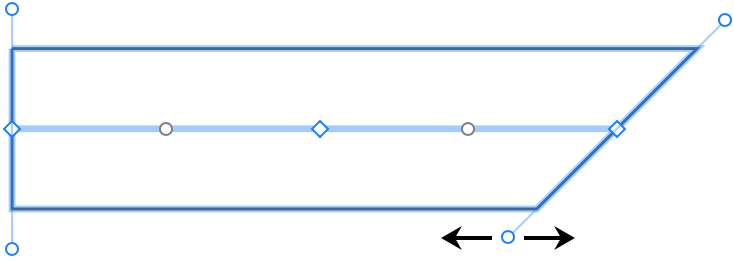

Handles at the pathway end to adjust the angle

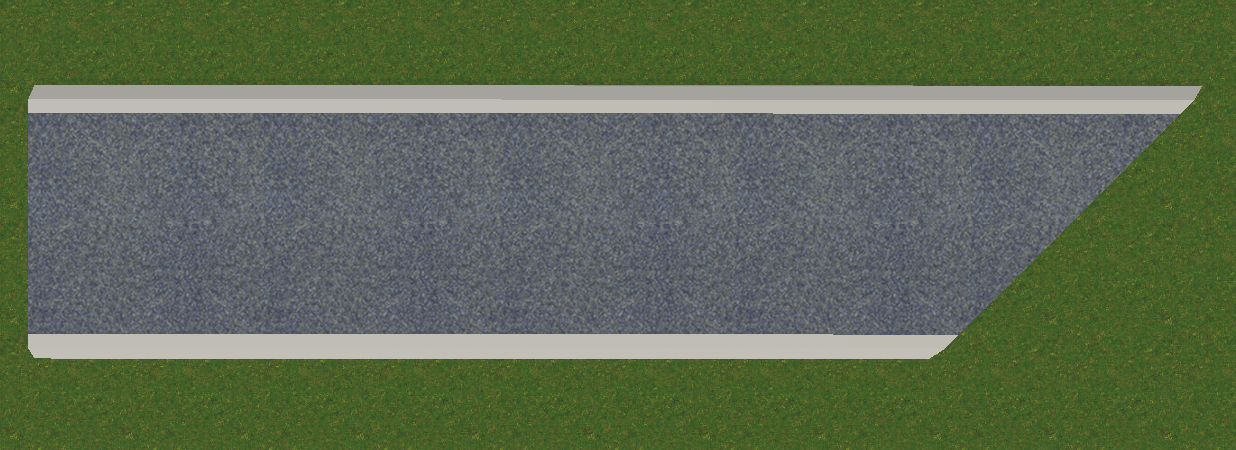

Pathway end with an adjusted angle

Edit Elevations

When you create a pathway, its elevation is set automatically based on the features of the underlying terrain. Moreover, if you edit the terrain, the pathway will be updated accordingly thanks to the Use Auto Elevations option in the Inspector.

You can customize the pathway by adjusting the elevations of its points. To do this, you should turn the Use Auto Elevations option off. Activate the edit mode and tap on a point. A circle will appear around the handle of that point, indicating that it is selected. Enter a new value into the Point Elevation field.

Change Materials of a Pathway

In order to change the material of any part of a pathway, drag a new material from the Material Library and drop it onto that part. For more details, read the Applying Materials section.
