Library and Inspector

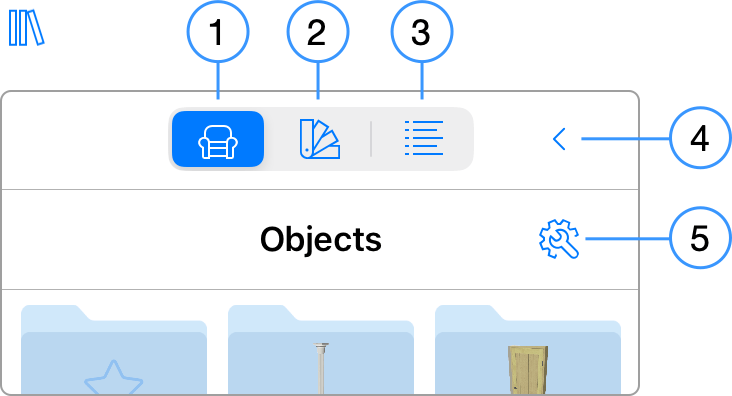

The Library panel

1. Object library.

2. Material library.

3. Project Tree lists all objects in your project.

4. Make the panel wide or narrow.

5. Show the Edit menu.

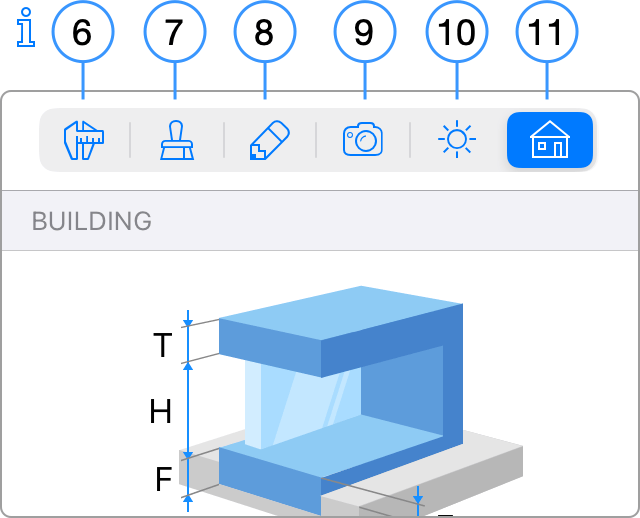

The Inspector

6. Object Properties: size, elevation, and more.

7. List of materials applied to an object.

8. Fill, stroke and text settings for the floor plan.

9. View points.

10. Light sources and environment.

11. Add or remove stories and roof.
