Working with Roofs

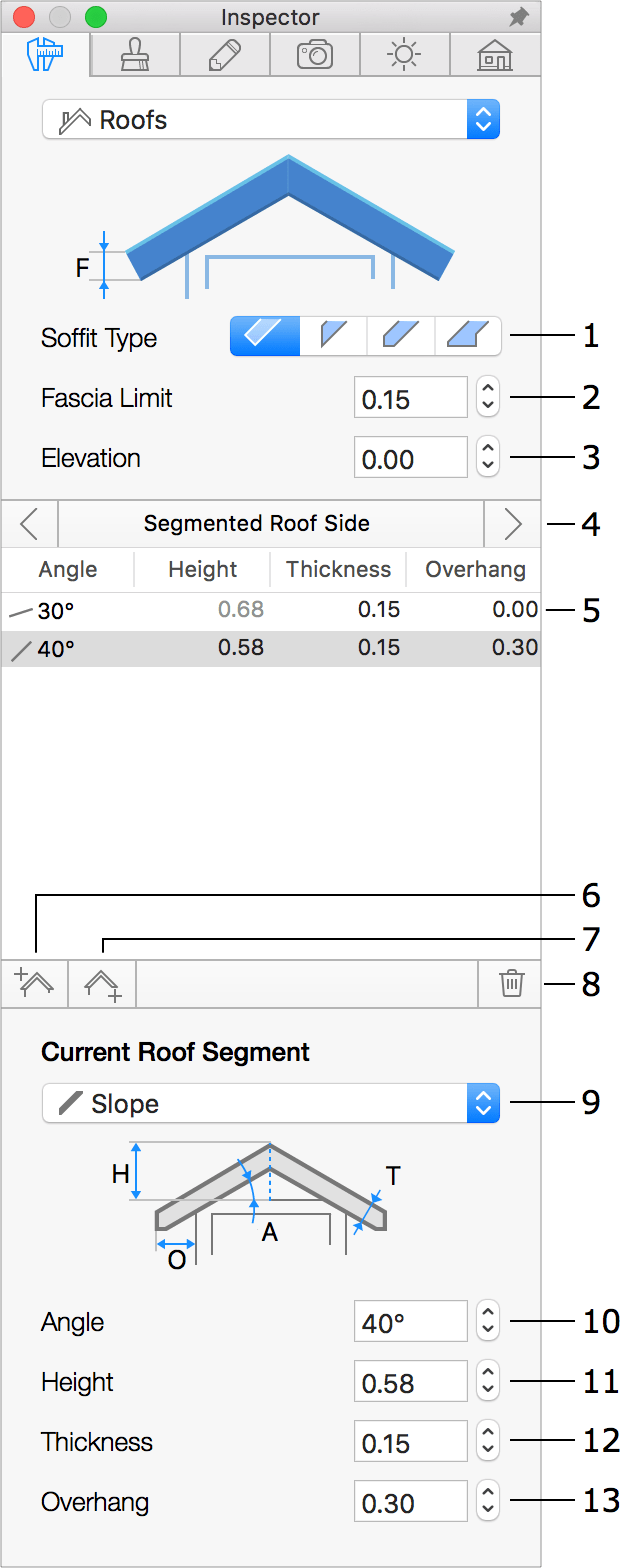

The geometric properties of roofs are located in the Object Properties tab of the Inspector.
1 – The type of the soffit. You can choose either basic, simple, horizontal, or box end soffit.
2 – The maximum size of the fascia.
3 – The elevation of the roof in relation to the floor level.
4 – Select another roof side. The two buttons select roof sides in a circle forward or backward.
5 – The list of segments of the selected roof side and parameters of each segment.
6 – Add a roof segment above the selected one.
7 – Add a roof segment below the selected one.
8 – Delete the selected roof segment.
9 – The roof segment type. Slope creates a tilted segment. Gable makes the segment vertical. Hole makes the selected segment disappear.
10 – The angle of the selected roof segment. You can adjust the angle of Slope segments only.
11 – The height of the selected roof segment. Note that you cannot modify the height of the uppermost or a sole segment.
12 – The thickness of the selected roof segment.
13 – The overhang distance of the selected roof segment.

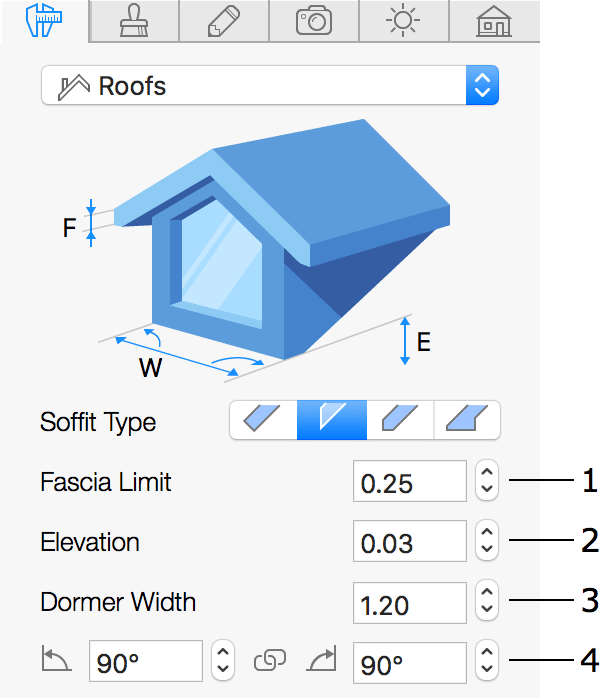

Additional Settings for Dormer Windows
1 – The maximum size of the fascia.
2 – The elevation of the dormer in relation to the floor.
3 – Dormer width.
4 – Angles of the left and right sides of the dormer. Changing these angles, you change the dormer top view from rectangle to trapezium or parallelogram.
